PS Series
Support signal & power backup
7680 fresh rate & 16bits grey scale
Support Customization
One Stop Solution Provide
Product Features
-
7680HZ
-
High brightness
-
Robust structure
-
IP65
-
Ultra wide angle
-
Easy maintenance
Production Introduction & Application

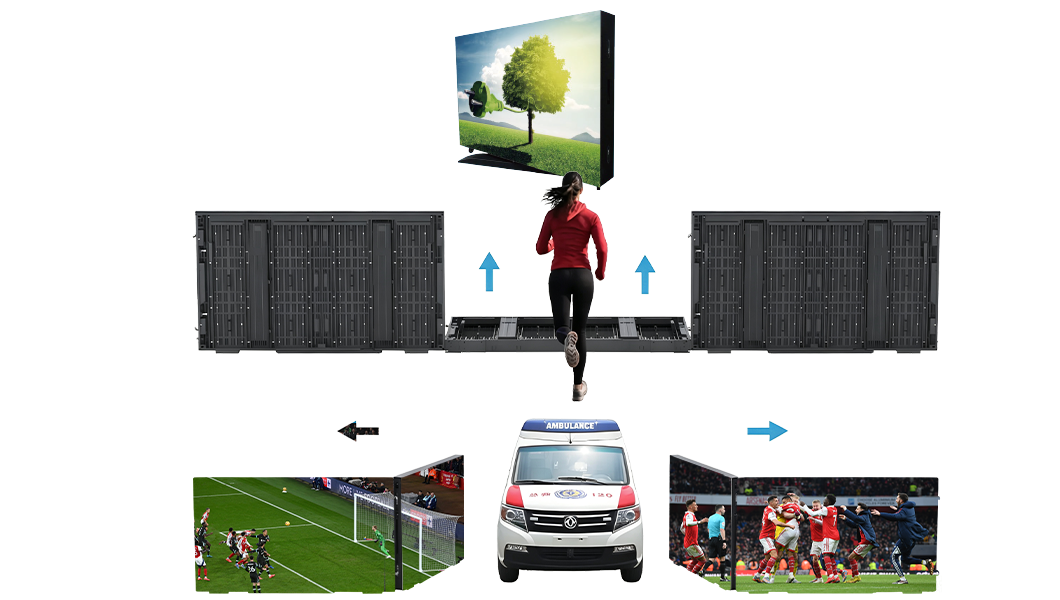

EURYLED offers custom-designed emergency passage solutions for stadium perimeter LED displays. Tailored access doors open rapidly for emergency evacuation, meeting venue safety standards while preserving uninterrupted display performance.

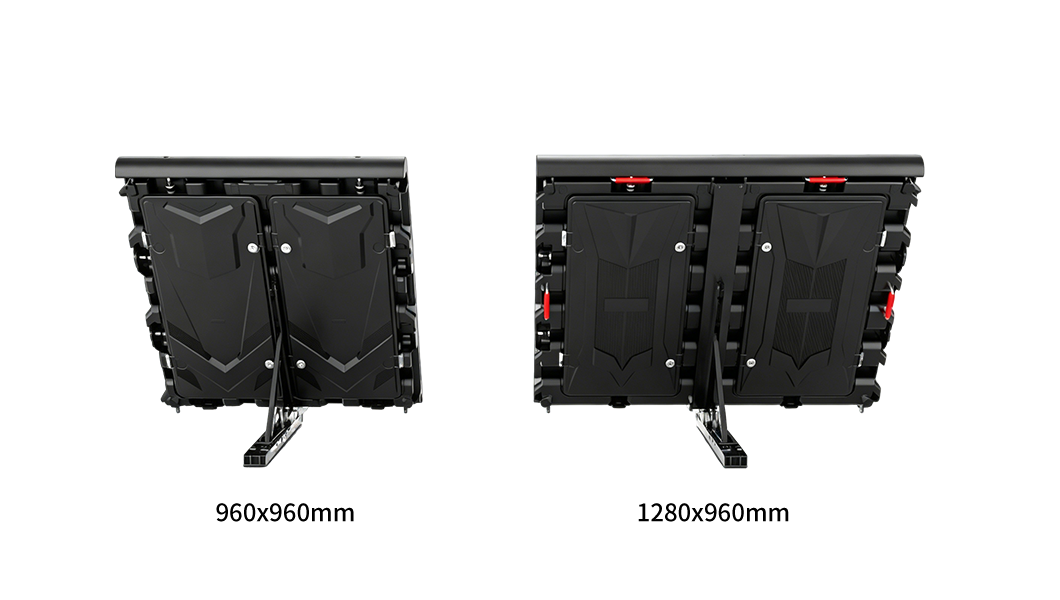

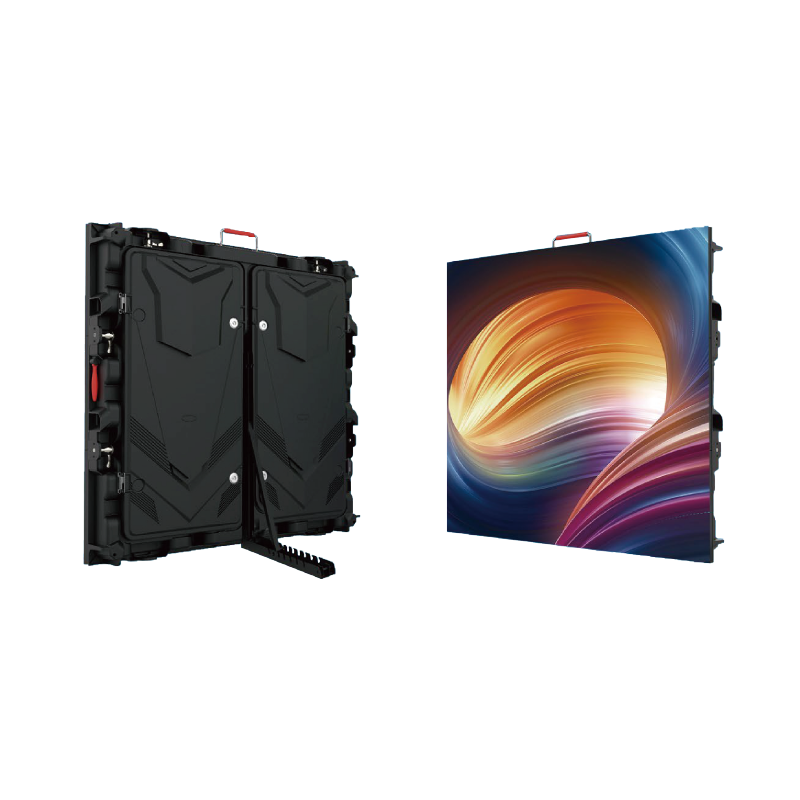

Stadium Perimeter LED Display (Two Size Options)
Professional stadium perimeter LED display with two size options. Designed for sports venues, it delivers bright clear field-side visuals for advertising, live scores and event information at various sports facilities.

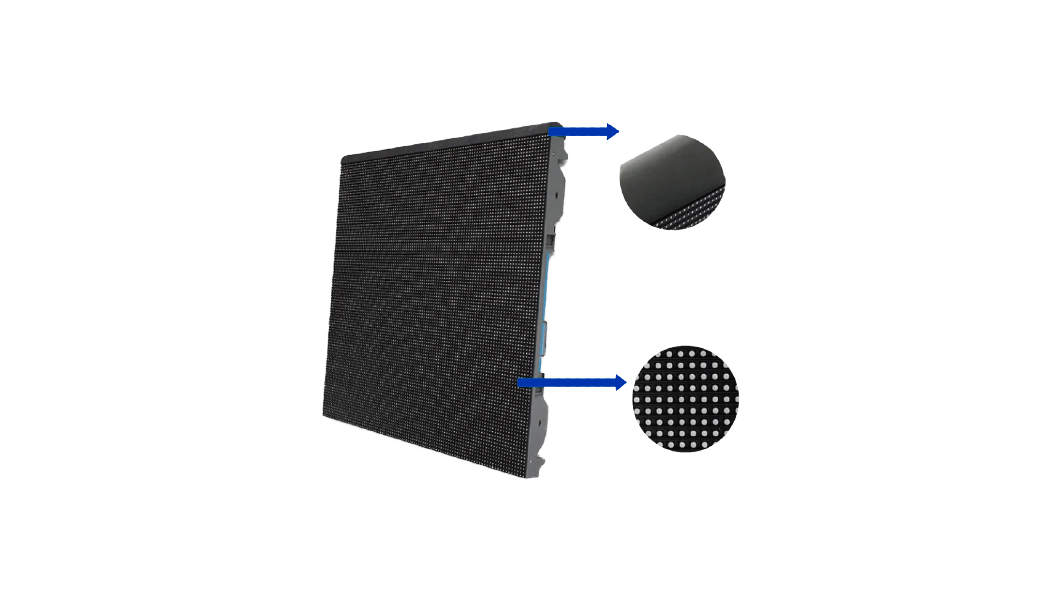

Stadium LED with Cushion Protection & Nationstar LEDs
Professional stadium perimeter LED display equipped with soft cushion protection and premium Nationstar LED lamp beads. Impact-resistant design ensures player safety, while high-quality LEDs deliver stable bright performance for outdoor sports venues.

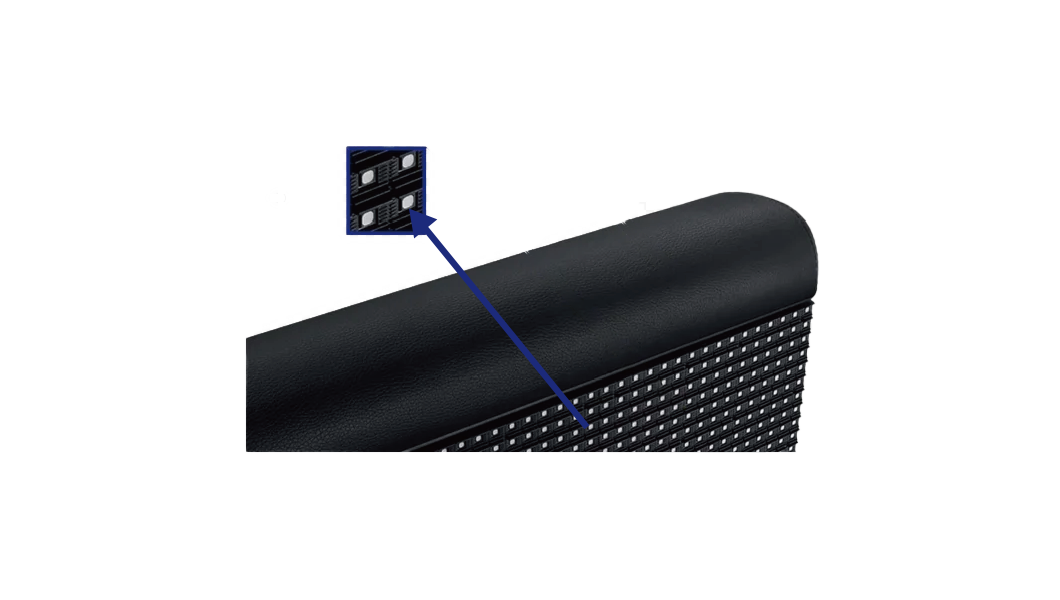

Soft Mask Design for Player Protection
Features soft mask cover design on the stadium LED display. The flexible cushioned surface effectively absorbs impact and protects players from injuries during intense sports matches, ensuring safe operation around the playing field.

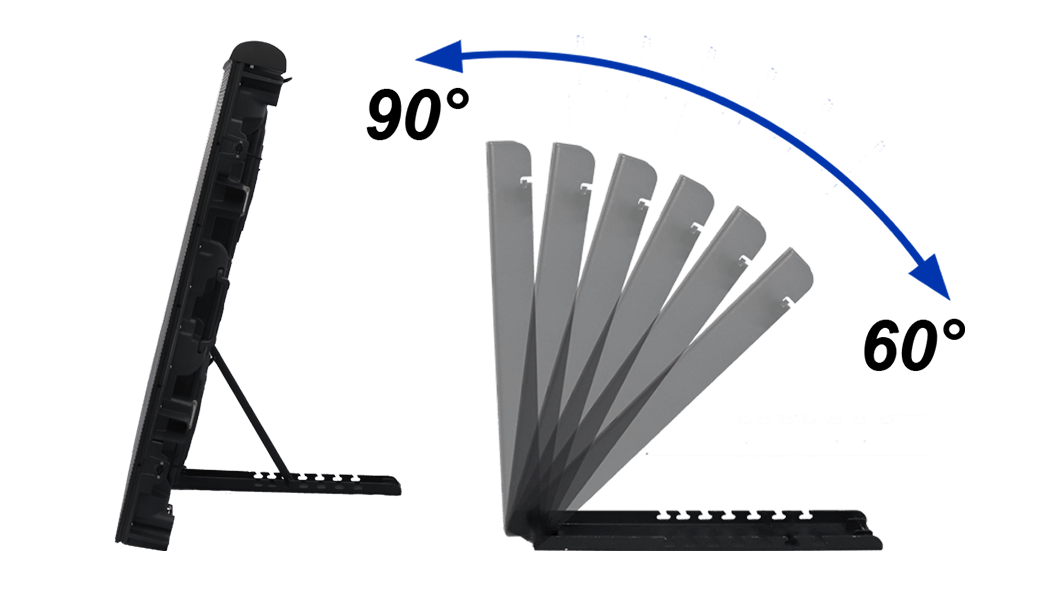

Adjustable Angle Bracket (60°-90°)
EURYLED Stadium LED display comes with adjustable angle bracket supporting 60° to 90° tilt adjustment. Flexible angle setting allows optimal viewing for spectators, adapting to different venue layouts and audience sightline requirements.

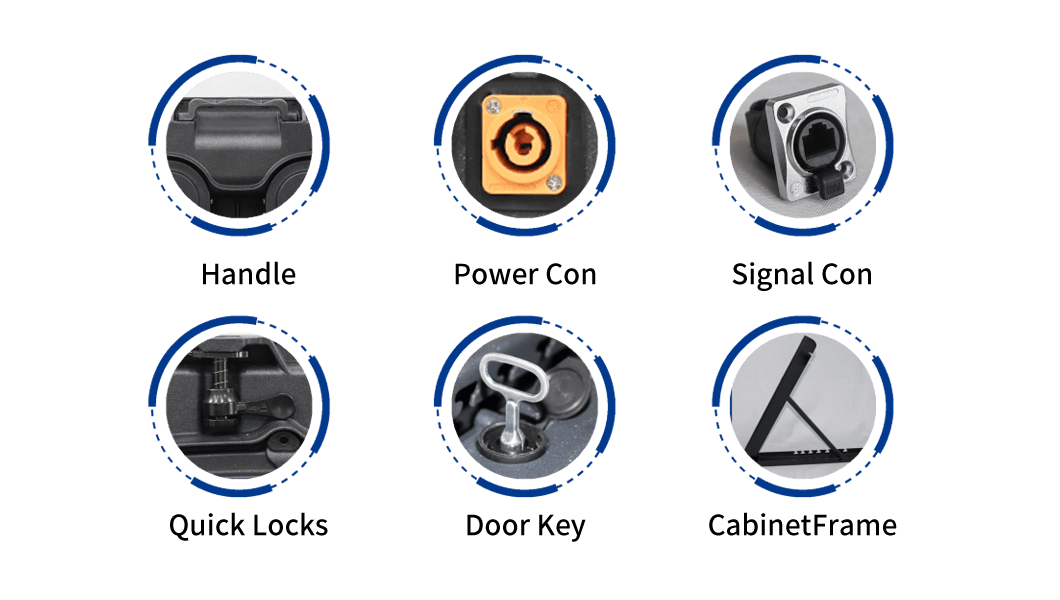

Well-Designed Cabinet Structure Details
Thoughtfully designed stadium LED cabinet with integrated handle, power/signal connectors, quick locks, door key and sturdy frame. All components are engineered for convenient installation, fast maintenance and reliable long-term outdoor operation.
Ultra-Wide Viewing Angle for Stadium Viewing
Boasts ultra-wide horizontal and vertical viewing angles. No matter where spectators are seated around the stadium, they all enjoy consistent color reproduction and clear distortion-free images for an optimal viewing experience.
Specifications
| Indoor/Outdoor PS | IPS5 | IPS10 | OPS6 | OPS6.6 | OPS8 | OPS10 |
| Pixel Pitch(mm) | 5 | 10 | 6 | 7 | 8 | 10 |
| Pixel Matrix Per Sq.m | 40000 | 10000 | 27777 | 22500 | 15625 | 10000 |
| Pixel Configuration | SMD2121 | SMD3528 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Brightness (nits) | 1200 | 1500 | 6000 | 6000 | 6800 | 7500 |
| Scan | 1/8 | 1/4 | 1/2 | 1/2 | 1/3 | 1/2 |
| Module Dimension | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 192x192mm/0.63x9.63ft | 320x160mm/1.05x0.52ft | 320x160mmZ1.05x0.52ft | 320x160mmZ1.05x0.52ft |
| Cabinet Dimension | 960x960mm/1280x960mm | 960x960mm/1280x960mm | 960x960mm | 960x960mm/1280x960mm | 960x960mm/1280x960mm | 960x960mm/1280x960mm |
| Cabinet Resolution | 192x192 | 96x96 | 160x160 | 144x144 | 160x120 | 96x96 |
| Cabinet Weight | 33kg ( Die casting aluminum) | 33kg ( Die casting aluminum) | 33kg ( Die casting aluminum) | 39kg ( Die casting aluminum) | 39kg ( Die casting aluminum) | 39kg ( Die casting aluminum) |
| Power Con. (Max / Avg) | 550/ 100 w/sq.m | 500 / 90 w/sq.m | 720/ 120 w/sq.m | 680/ 120 w/sq.m | 680/ 120 w/sq.m | 680/ 120 w/sq.m |
| IP Rate | IP43 | IP65 | ||||
| Service Access | Front / Rear | Rear | ||||
| Refresh Rate (HZ) | 7680 | 7680 | ||||
| Grey Scale (bit) | 14bit | 16bit | ||||
| Viewing Angle (H/V) | 140/140 | 140/140 | ||||
| Input Voltage (AC) | 110V/240V | 110V/240V | ||||
| * Specifications and photos are subject to change without prior notice. | ||||||
