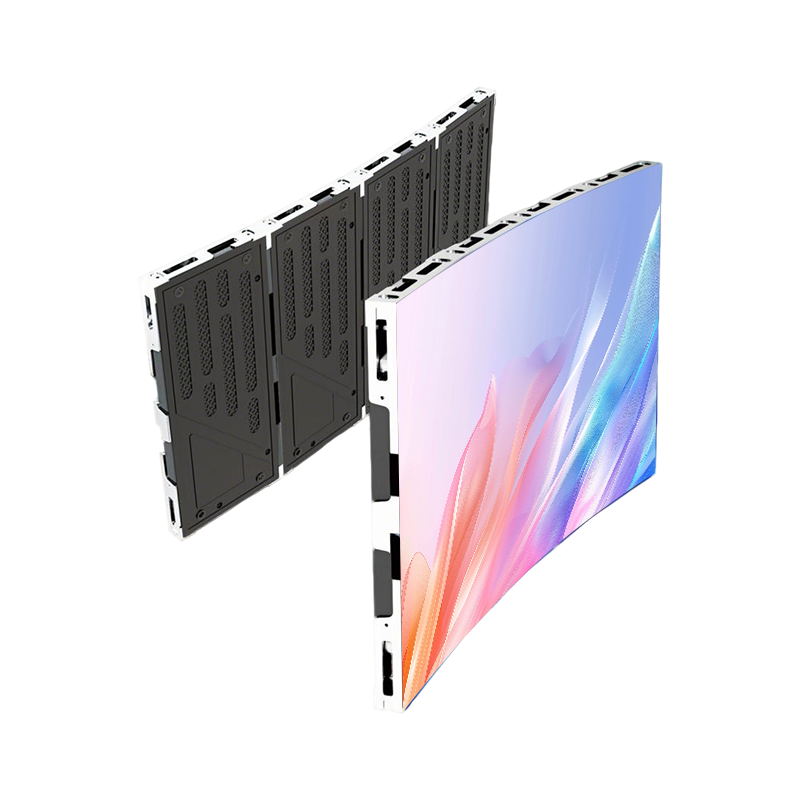

HD CURVE
7680 high refresh rate & 18bits high grey scale
Ultra-clear & high-value micro LED display
Front maintenance & front installation
Power & data dual backup
Product Features
-
7680HZ
-
Ultra clear
-
Light & thin
-
Video Conference
-
High-precision touch
-
Dual Backup
Production Introduction & Application

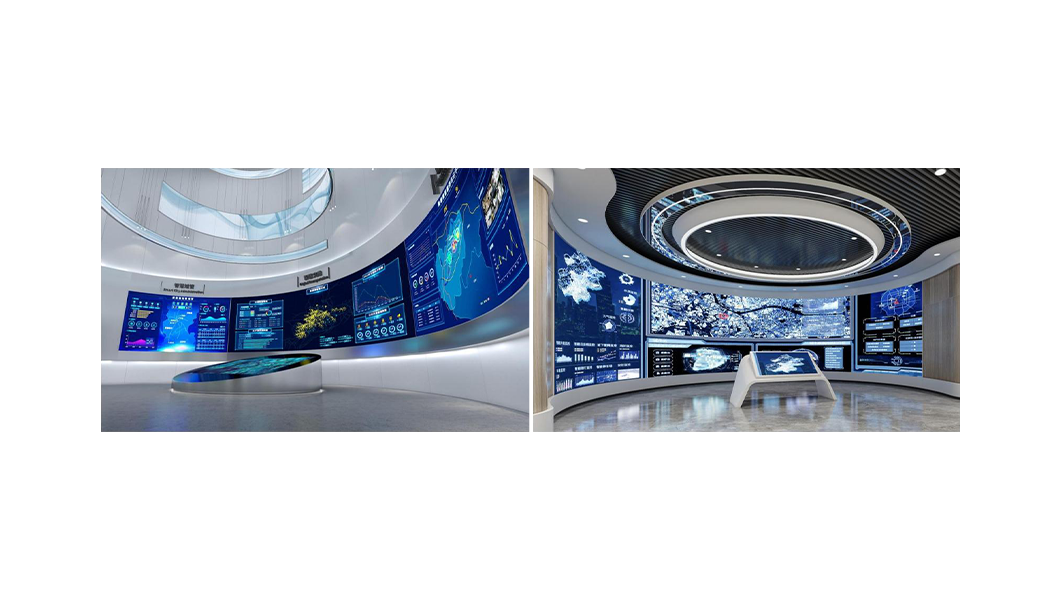

Purpose-built curved LED cabinet with 16:9 golden aspect ratio, supporting 2K, 4K and 8K ultra-high resolution curved displays. Designed for seamless smooth arc formation, it creates stunning immersive panoramic visuals perfect for high-end control rooms, large-scale exhibitions, brand showcases and premium commercial venues.
Modular 16:9 Golden Ratio Cabinet Sizing
Four 150mm-wide cabinets combine to form a 600mm width, achieving a 600×337.5mm 16:9 golden ratio panel size. This flexible modular design enables precise aspect ratio matching for optimal video display.

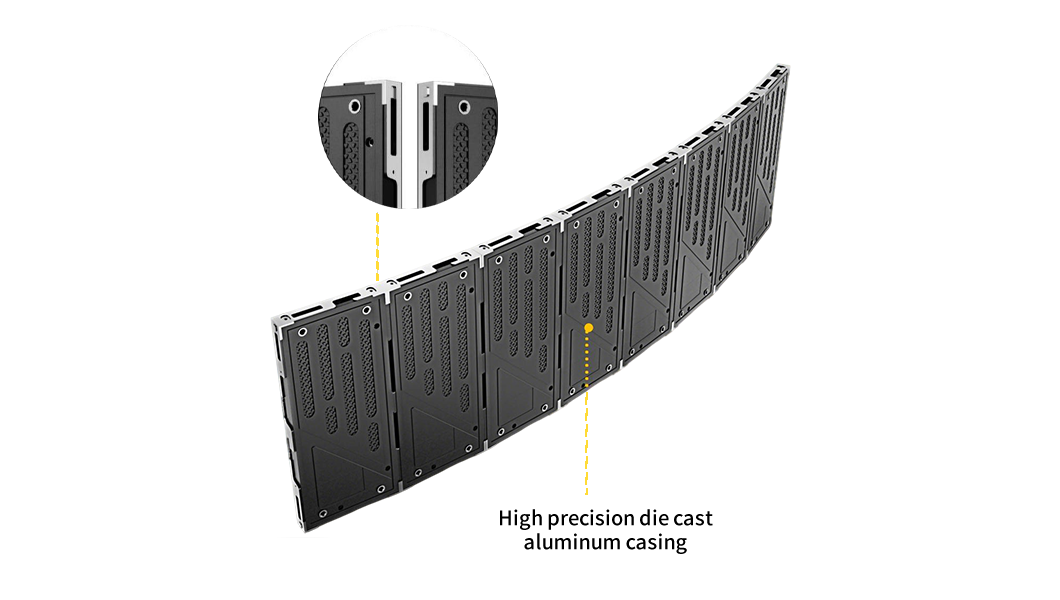

Seamless Curved Splicing Technology
It adopts precision seamless curved splicing technology. Tight gapless joints between cabinets create smooth continuous curved surfaces with no visible seams, delivering an immersive uninterrupted visual experience for various display applications.
Dual Backup Power & Signal System
Equipped with dual backup system for both power supply and signal transmission. Redundant circuit design ensures uninterrupted display operation even if one line fails, guaranteeing reliable performance for critical events and important installations.
Front Installation & Front Maintenance Design
Features both front installation and front maintenance design. All mounting and module replacement work can be done entirely from the front side, eliminating the need for rear access space and saving valuable installation depth.

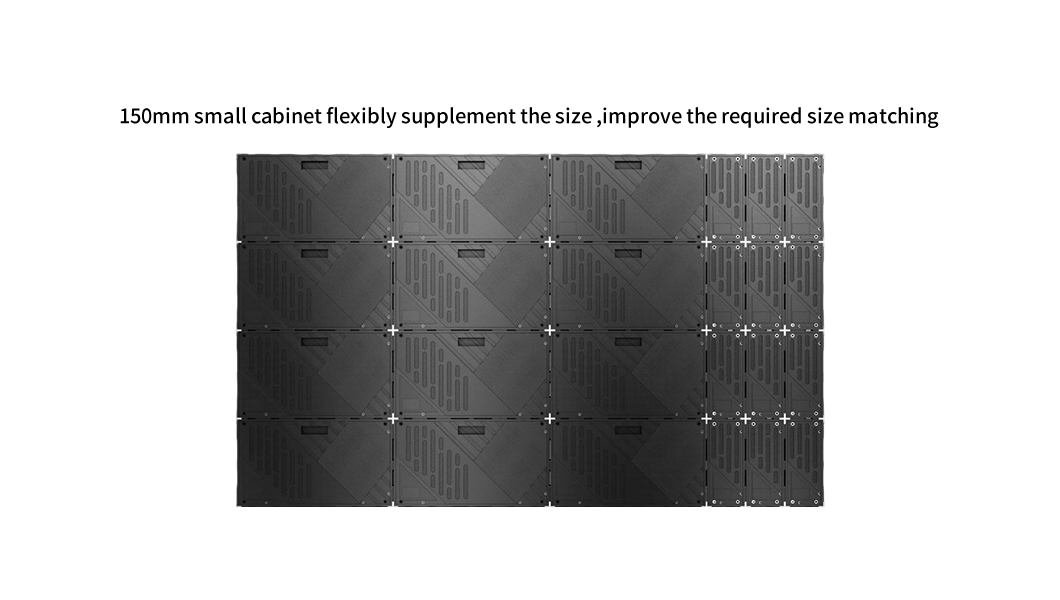

Multi-Size Mixed Splicing Compatibility
Supports mixed splicing of multiple cabinet sizes. Different dimension modules can be freely combined to create various screen sizes and aspect ratios, offering maximum flexibility for custom project designs and diverse venue requirements.
Curved-Ready LED Display Solution
HD CURVE is perfectly suited for fixed installation projects with curved requirements. Flexible arc adjustment enables smooth seamless curved screens, ideal for architectural displays, commercial venues, control rooms and immersive exhibition spaces.
Specifications
| HD PRO | HDPR 0.9 | HD PRO1.2 | HD PRO1.5 | HD PRO1.8 |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Brightness Calibrated | 600nits | 700nits | 800nits | 800nits |
| Pixel Matrix Per Sq.m | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Scan | 1/60 | 1/60 | 1/48 | 1/45 |
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Module Dimension | 150x168.75mm | 150x168.75mm | 150x168.75mm | 150x168.75mm |
| Cabinet Dimension | 600x337.5×28mm | 600x337.5×28mm | 600x337.5×28mm | 600x337.5×28mm |
| Cabinet Resolution | 640x360 | 480x270 | 385x216 | 320x180 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Power Con.(W/㎡) (Max / Avg) | 550W/180W | 650W/200W | 650W/ 200W | 650W/ 200W |
| Cabinet Weight | 3.78KG | 3.78KG | 3.78KG | 3.78KG |
| Service Access | Front | Front | Front | Front |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 18 | 18 | 16 | 16 |
| IP Rate | IP65/IP40 | IP65/IP40 | IP65/IP40 | IP65/IP40 |
| Operation Temperature | -20℃ ~ +80°℃ | -20℃ ~ +80°℃ | -20℃ ~ +80°℃ | -20℃ ~ +80°℃ |
| Input Voltage (AC) | 110V-220V | 110V-220V | 110V-220V | 110V-220V |
| * Specifications and photos are subject to change without prior notice. | ||||
