Product Features
-
7680HZ
-
Max 10,000nits +
-
Support Customization
-
Power saving
-
Remote control
-
IP65
Production Introduction & Application

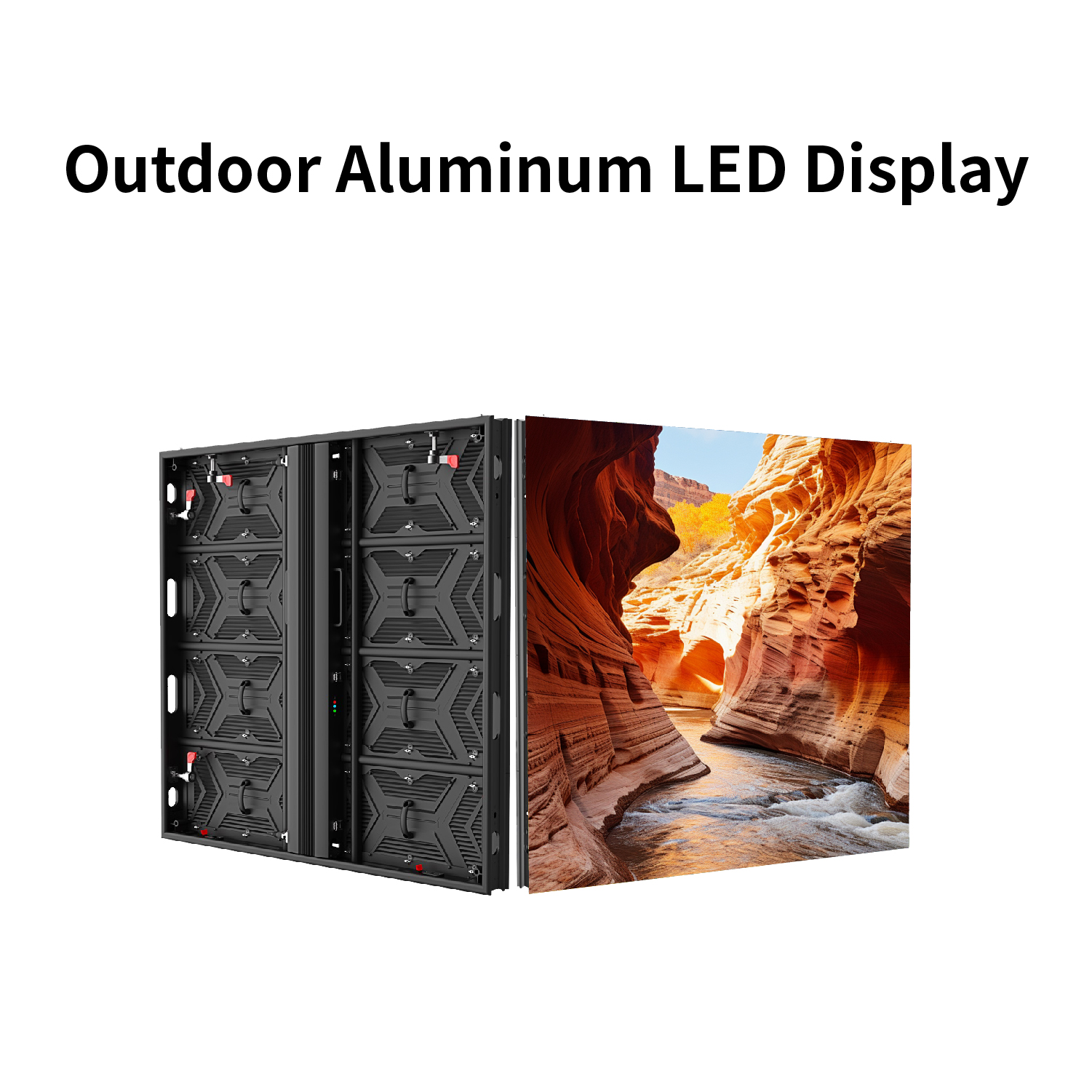

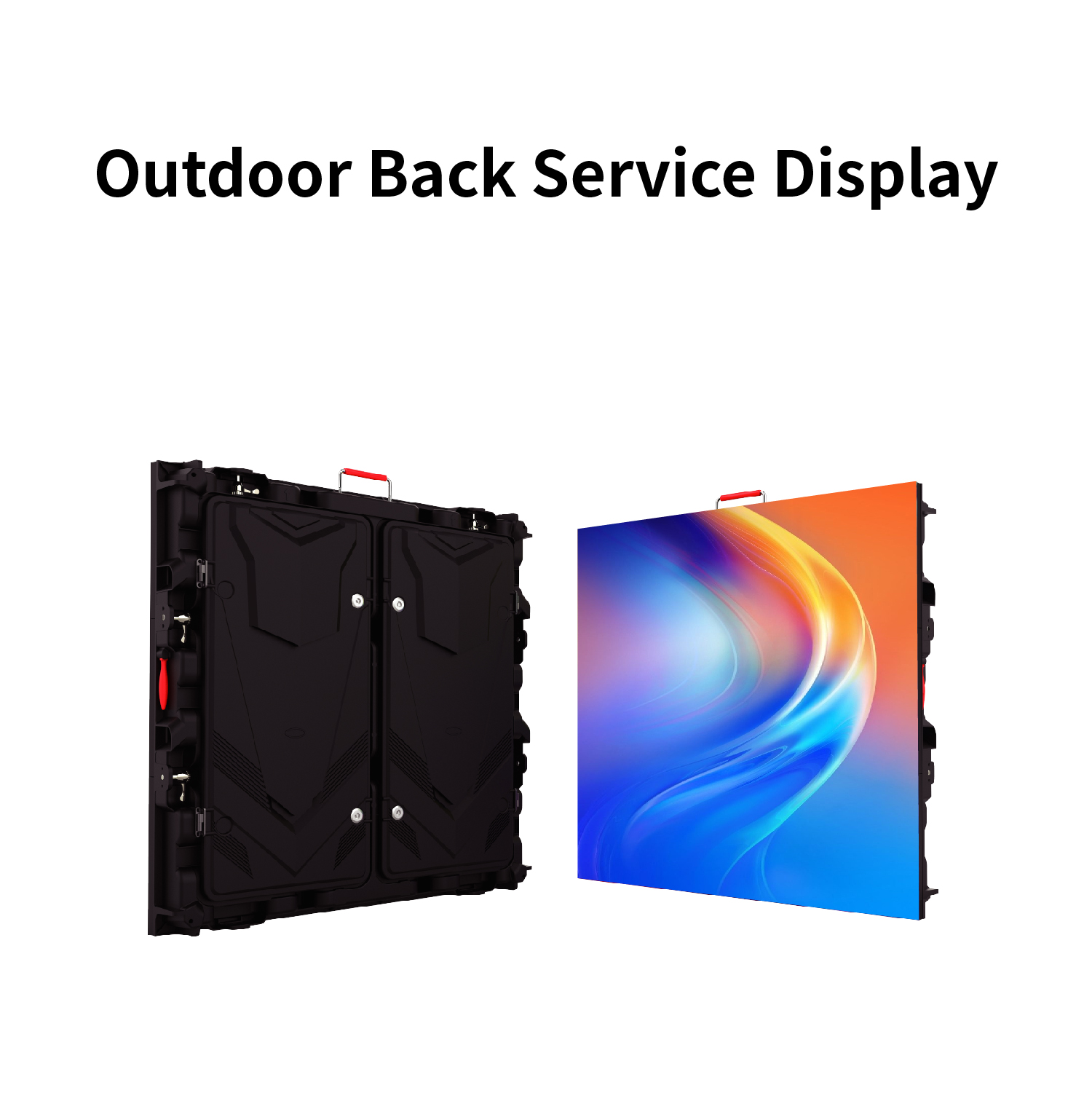

This durable outdoor LED display comes with high protection rating and solid load-bearing structure. It adopts modular design, supports multi-shape splicing and is quick to install.

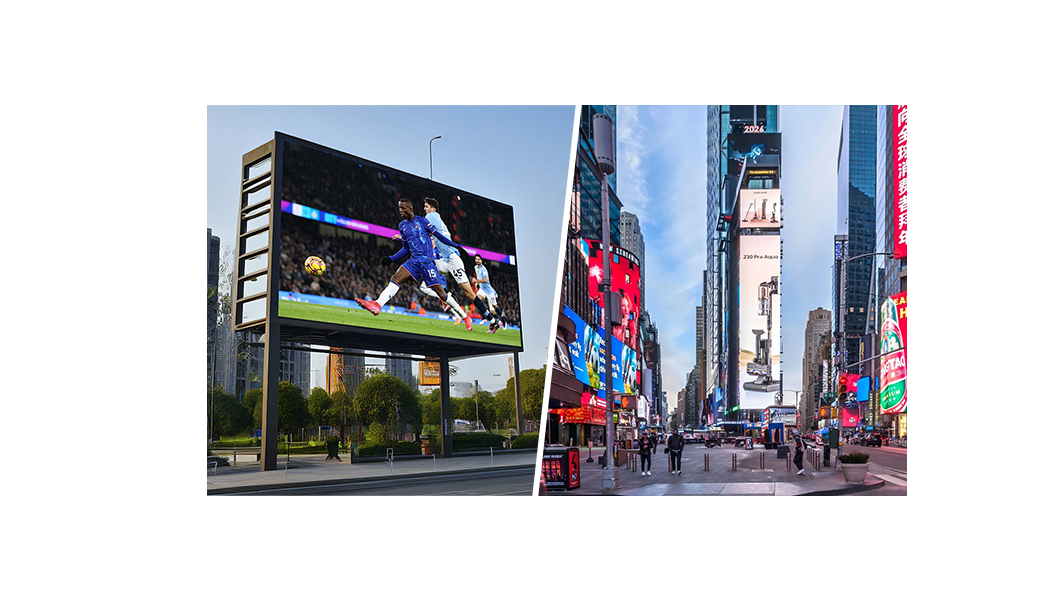

Perfect for city roadside billboards, bustling downtown streets and stadium perimeter commercial advertising.
Perfect for city roadside billboards, bustling downtown streets and stadium perimeter commercial advertising.

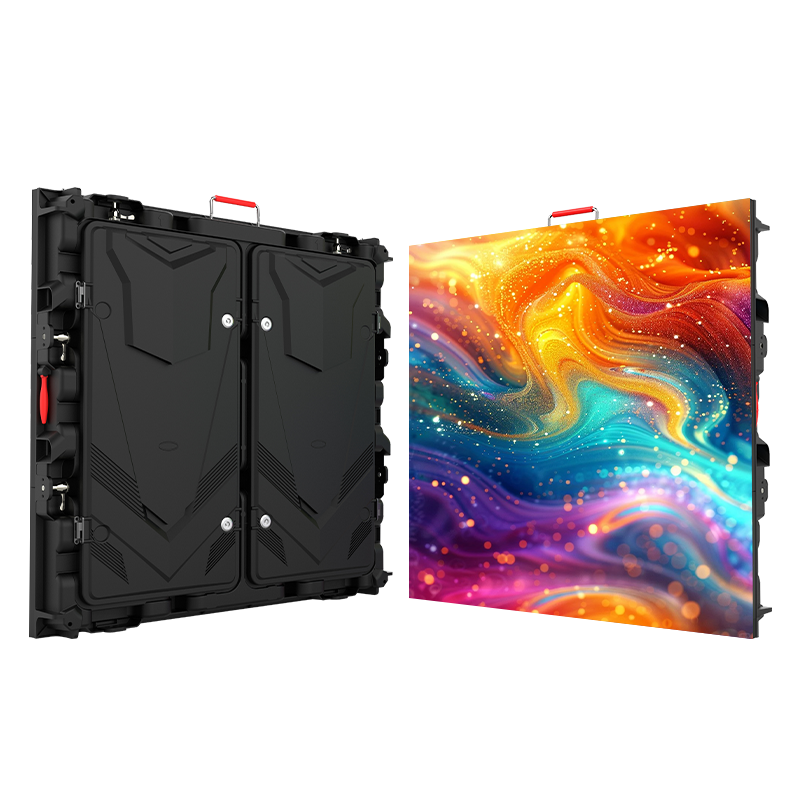

Cabinet Size
OB series offers three standard sizes: 640×960mm, 960×960mm and 1280×960mm.
It features a high-strength integrated back shell with built-in quick locks, enabling fast assembly and flexible multi-size splicing.
It features a high-strength integrated back shell with built-in quick locks, enabling fast assembly and flexible multi-size splicing.

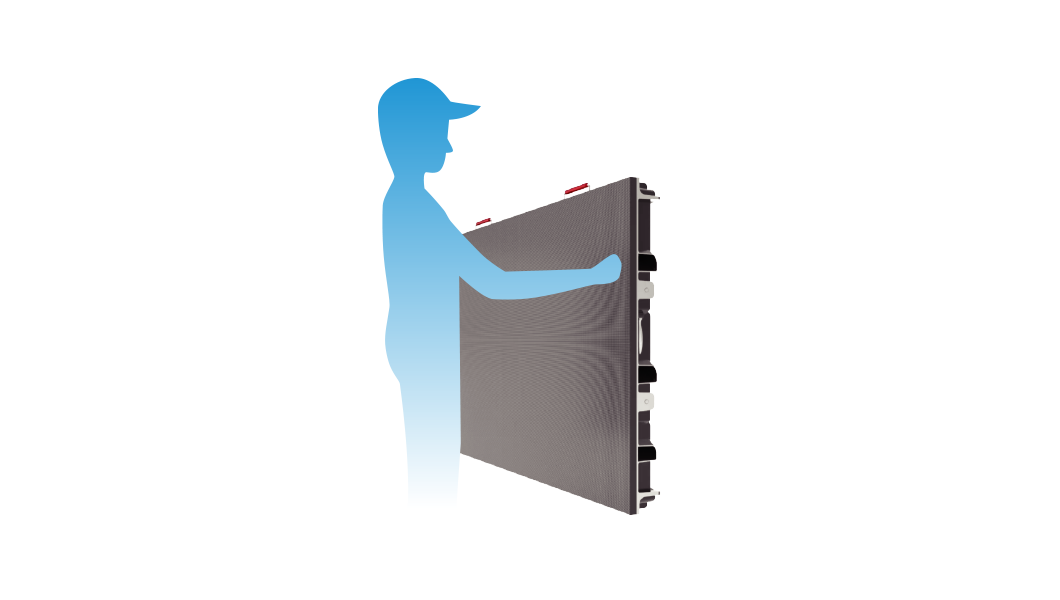

32KG/Cabinet
Each standard 960×960mm LED cabinet weighs 32 kilograms. It is lightweight enough to lift and carry easily, greatly simplifying on-site handling and quick assembly work.

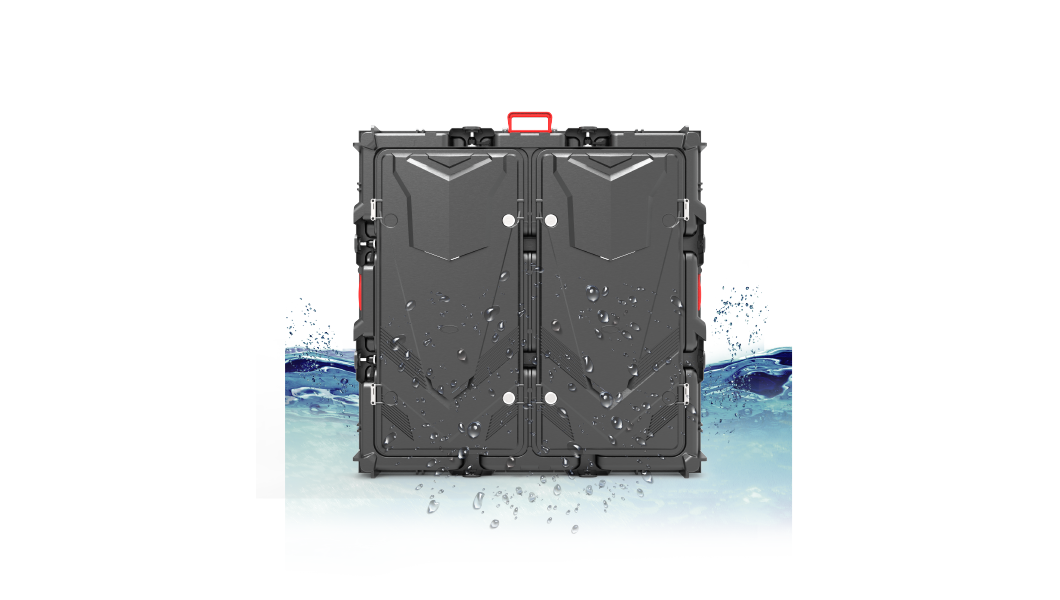

IP65 Protective Level
Euryled OB Series cabinet reaches IP65 high waterproof protection grade. Its fully sealed back shell effectively blocks rainwater splashes and moisture, stable for long-term outdoor use in all weather conditions.
Max 10,000nits+ Brightness
OB LED display delivers ultra-high brightness up to 10,000 nits. Compared with low-brightness screens, it presents vivid, clear images even under strong direct sunlight, guaranteeing outstanding visual performance for outdoor advertising all day long.

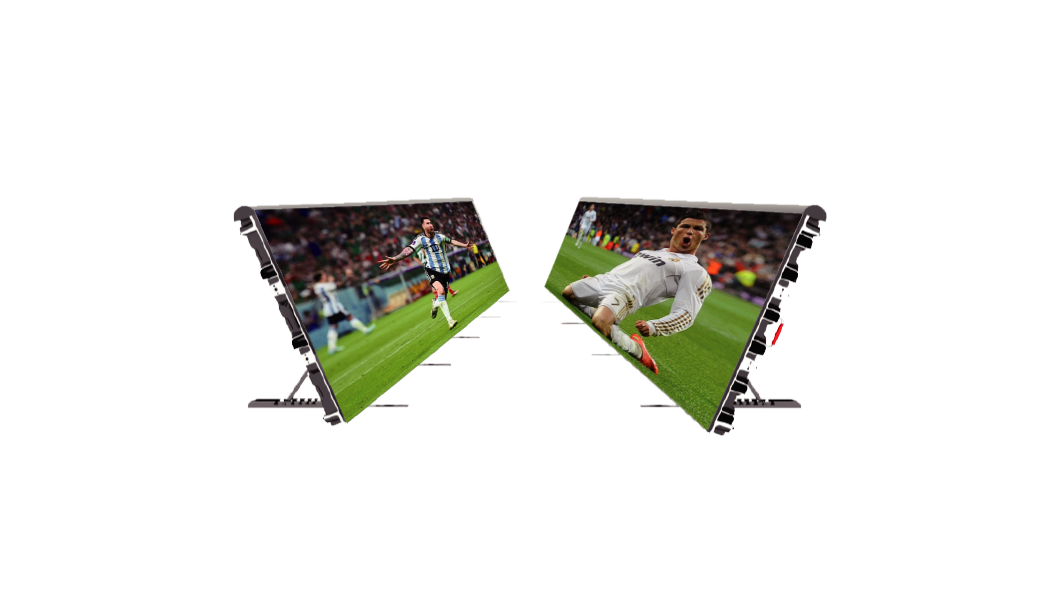

Stadium Perimeter Display
Equipped with dedicated support brackets, these LED cabinets can be assembled into complete stadium perimeter fence screens. They perfectly line football fields to display live matches, ads and event promotions, delivering bright, smooth visuals for sports venues.

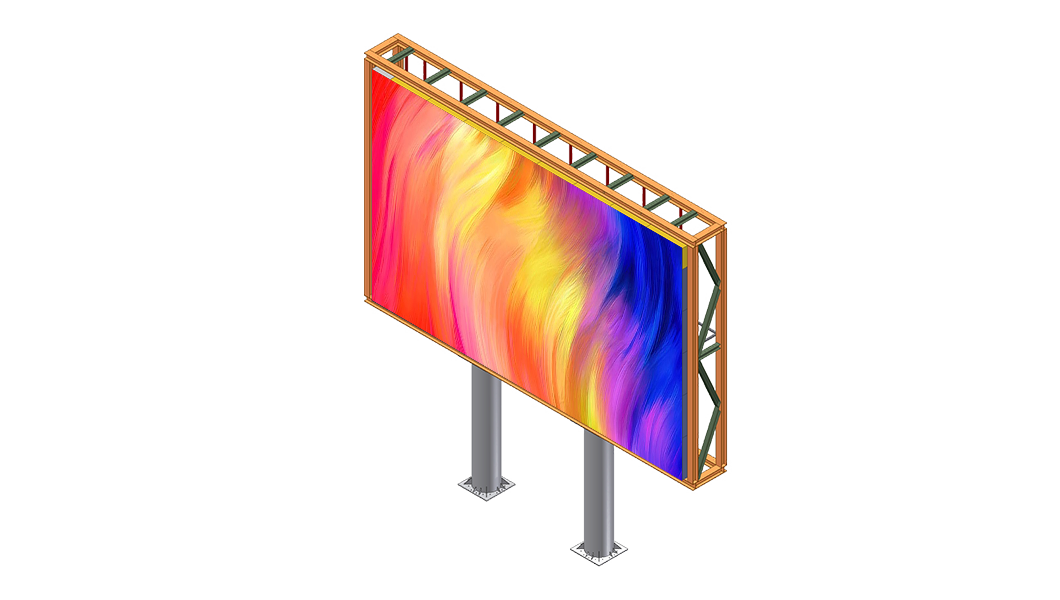

Structure Customization
Euryled fully supports customized installation steel structures for LED screens. We deliver one-stop solutions covering structural design, production and matching display cabinets, catering to all unique outdoor installation requirements of different projects.

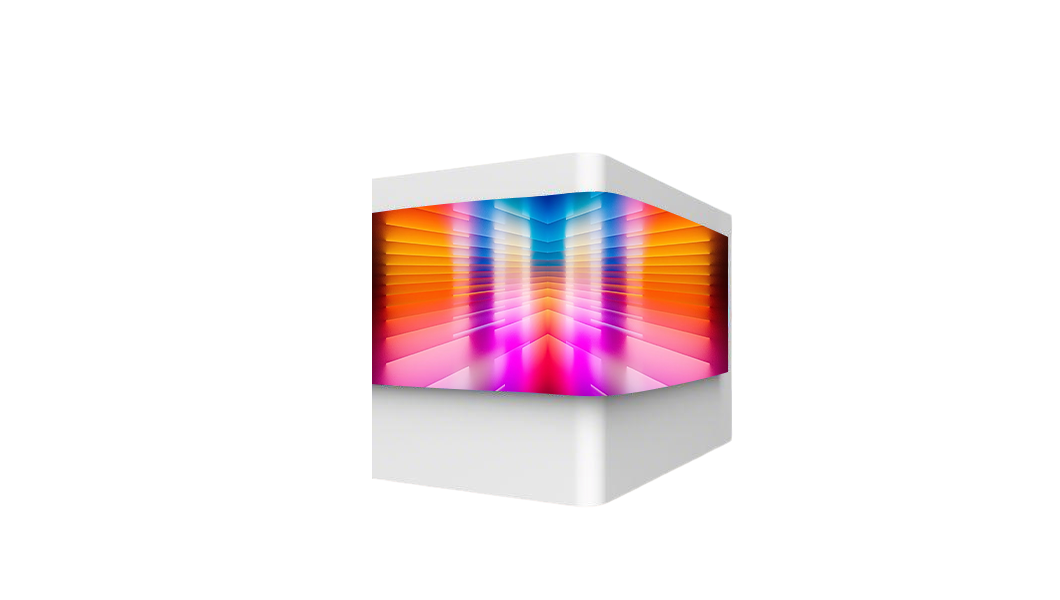

3D Curve LED Screen
Euryled supports customized 3D curved corner LED screens. Cabinets can be seamlessly spliced into smooth curved corners to deliver immersive wraparound visuals, ideal for malls and flagship retail stores.

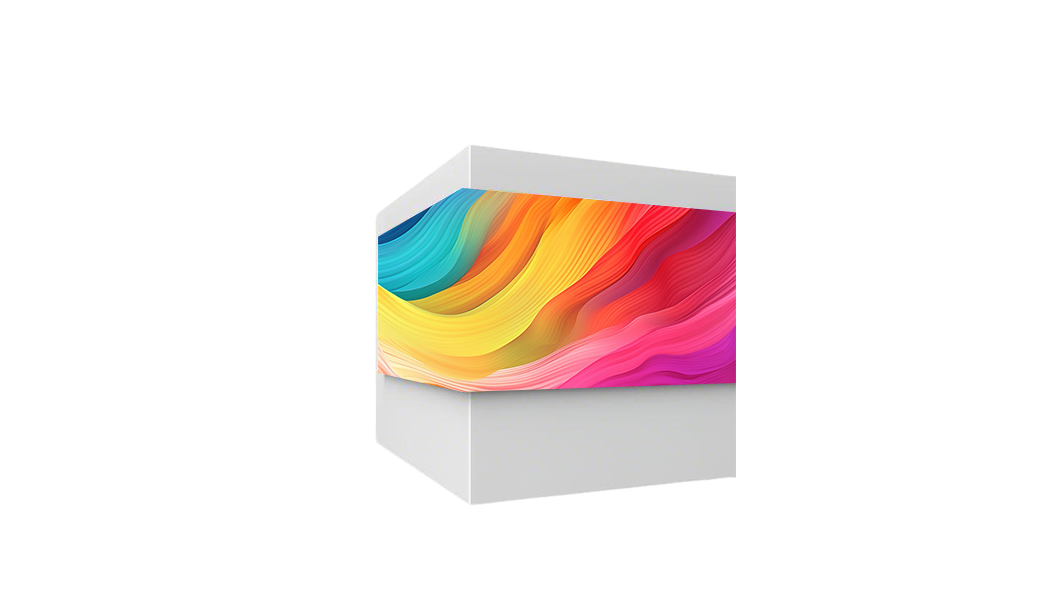

3D Right Angle LED Screen
We provide custom 3D right-angle corner LED screens. The panels connect seamlessly at sharp corners to form continuous wrap-around displays, creating striking three-dimensional visual effects for shopping centers and brand boutiques.
Creative Design Ⅰ
We support various custom special-shaped LED displays, including letter-shaped, spherical, cubic and cylindrical screens. Flexible cabinet splicing allows countless creative 3D shapes to meet unique creative design demands of brand exhibition halls, shopping malls and landmark projects.
Creative Design Ⅱ
Our LED cabinets support diversified special splicing shapes. You can create seamless corner, polygonal, wavy curved and stepped staircase displays. Smooth joint design ensures uniform picture performance for creative commercial and architectural visual projects.
Specifications
| Outdoor Back Service | OB2.5 | OB3.076 | OB4 | OB5 | OB6.6 | OB8 | OB10 |
| Pixel Pitch(mm) | 2.5 | 3.076 | 4 | 5 | 6.67 | 8 | 10 |
| Pixel Matrix Per Sq.m | 160,000 | 105,680 | 62,500 | 40,000 | 22500 | 15625 | 10000 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Brightness (nits) | 5000 | 5000 | 5500 | 5500 | 5500--10000 | 6500--10000 | 6500--10000 |
| Scan | 1/16 | 1/13 | 1/8 | 1/8 | 1/6 | 1/3 | 1/2 |
| Module Dimension | 320x160 | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Power Con. (Max / Avg) | 900/ 180 w/sq.m | 900/ 180 w/sq.m | 900/ 180 w/sq.m | 900/ 180 w/sq.m | 720/ 180 w/sq.m | 720/ 180 w/sq.m | 720/ 180 w/sq.m |
| Cabinet Dimension | Die casting aluminum cabinet (Suggested): 960x960mm, 640x960mm, 1280x960mm; Iron cabinet: Mutiple of module size | ||||||
| Cabinet Weight | 32KG | 32KG | 32KG | 32KG | 32KG | 32KG | 32KG |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Service Access | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
| Refresh Rate (HZ) | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 | 7680 |
| Grey Scale (bit) | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| Input Voltage (AC) | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V | 100V ~ 240V |
| * Specifications and photos are subject to change without prior notice. | |||||||
