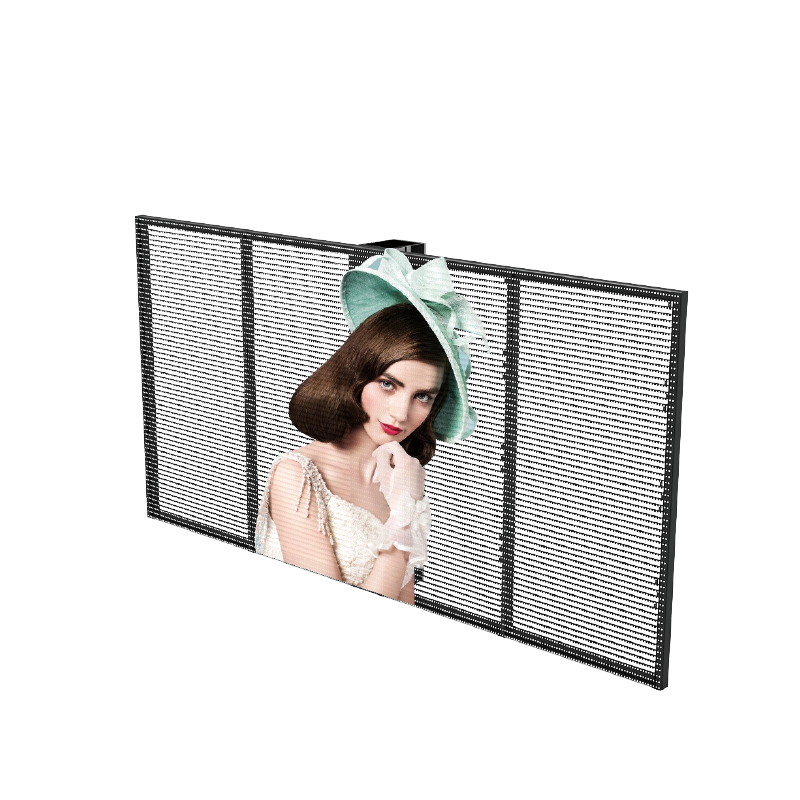

IT Series
High transparency
Easy installation & maintenance
7680 refresh & high greyscale
Support customization
Product Features
-
7680HZ
-
Fast cooling
-
Ultra wide angle
-
Hidden wiring
-
Front & rear access
-
Custom brightness
Production Introduction & Application

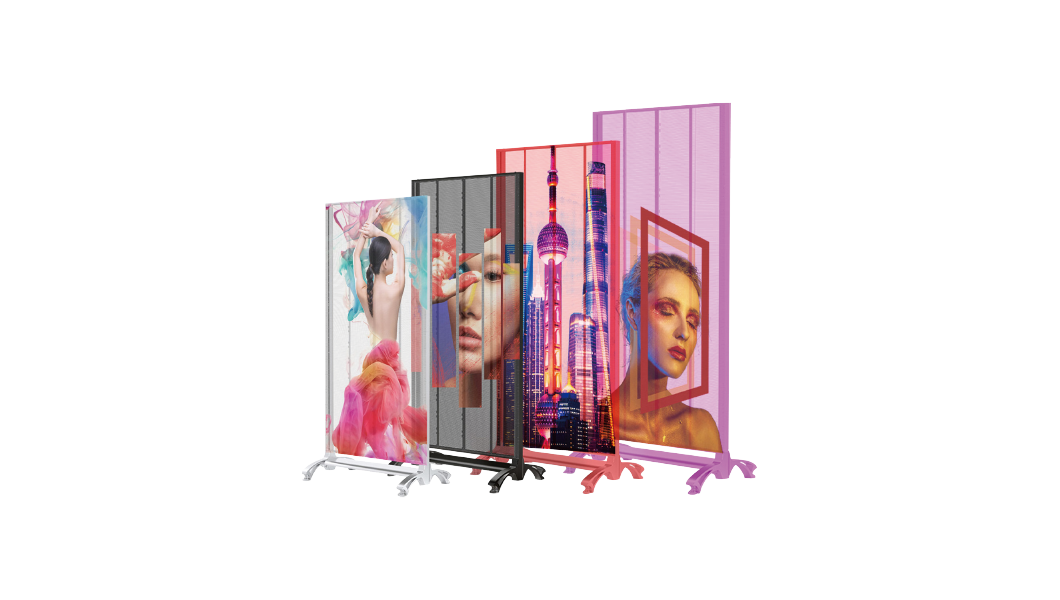

EURYLED Transparent LED display supports both fixed installation and mobile advertising kiosk formats. Fully customizable in size, it offers versatile display solutions for retail storefronts, shopping malls, brand promotions and various commercial scenarios.

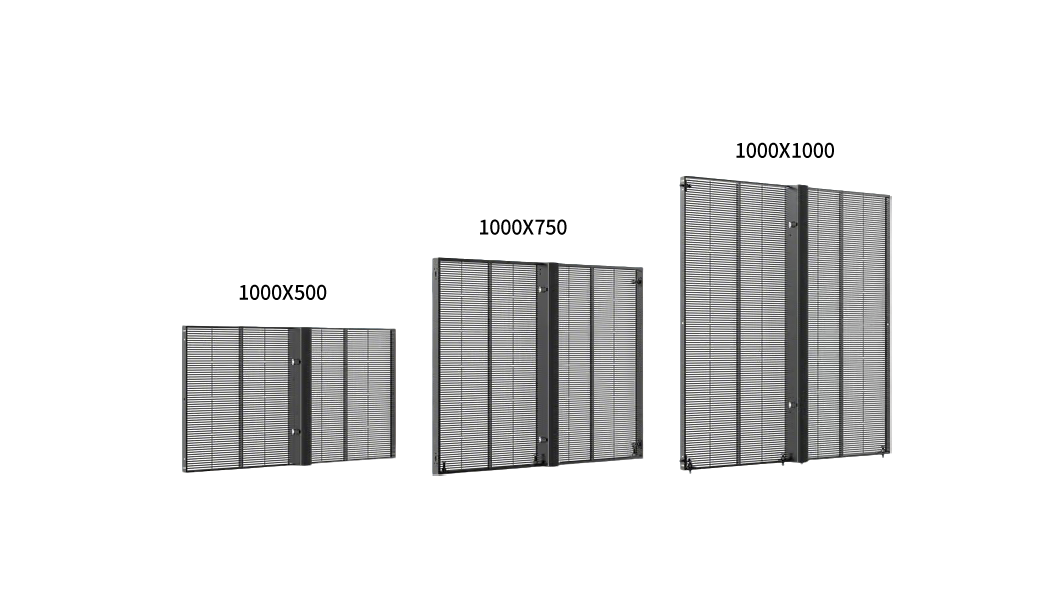

Multi-Size Interchangeable Splicing
Available in multiple cabinet sizes that can be freely spliced together. Different dimension modules mix and match to create custom screen dimensions and aspect ratios, providing maximum flexibility for diverse project specifications.
Curved Transparent LED Display Available
IT Series LED displays can also be configured in curved formations. Flexible arc design maintains high transparency while creating immersive wrap-around visual effects, ideal for creative retail spaces and architectural display projects.

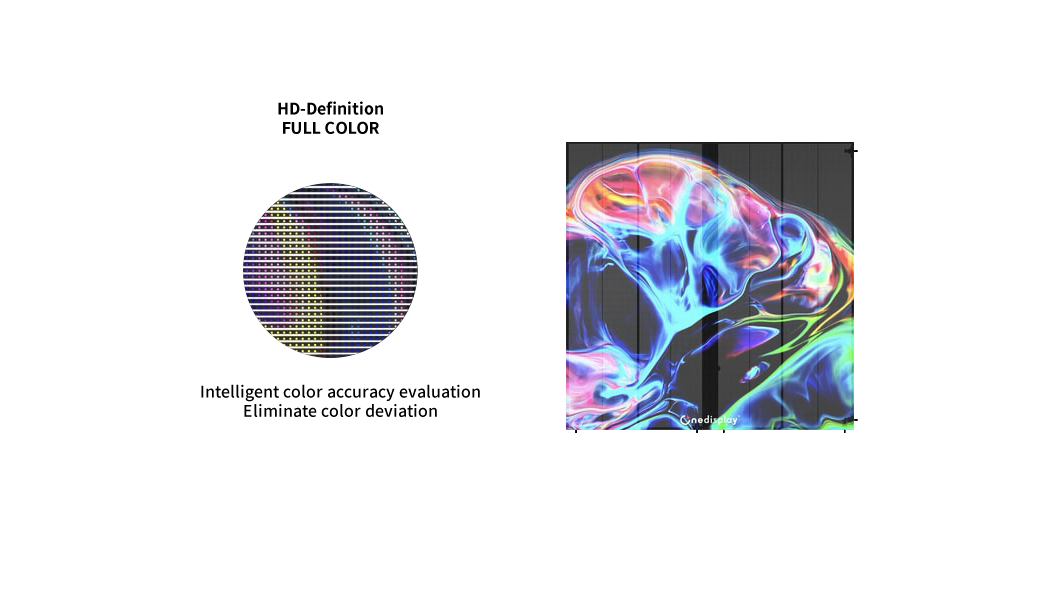

HD Full Color with Intelligent Color Calibration
Delivers brilliant HD full-color visuals with intelligent color calibration technology. It automatically evaluates and corrects color accuracy across panels, removing color inconsistency for uniformly vivid, true-to-nature image quality.

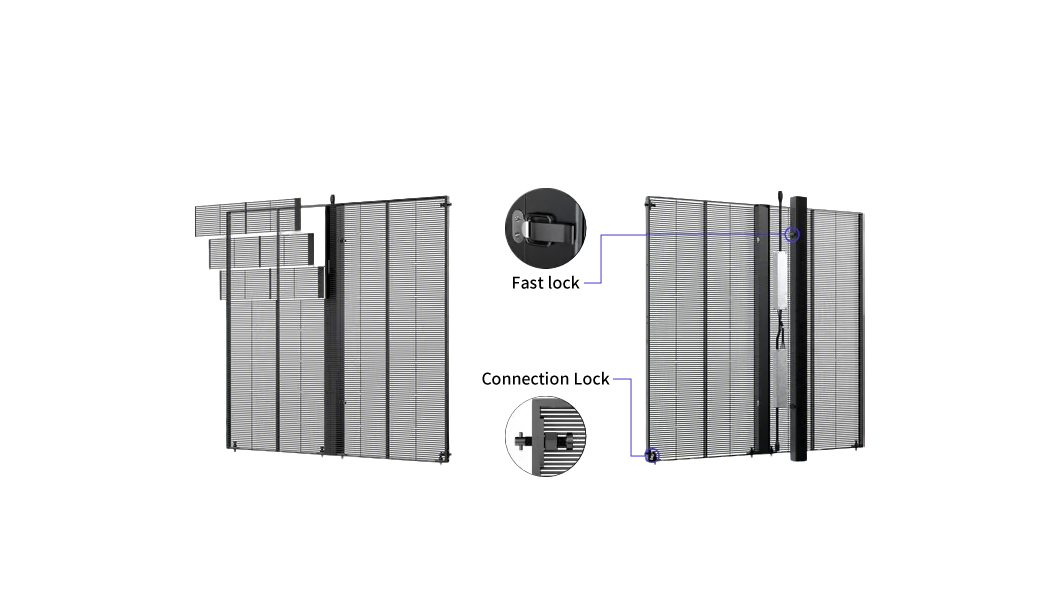

Quick & Easy Installation LED Display
Designed for fast hassle-free installation. Simplified modular structure and tool-free quick locking system allow even inexperienced staff to complete setup efficiently, reducing labor costs and project turnaround time.
EURYLED Complete Hanging Solution
EURYLED provides professional hanging rigging structures for LED displays as a complete one-stop solution. Sturdy reliable mounting systems ensure safe secure installation, tailored to fit various screen sizes and venue requirements.

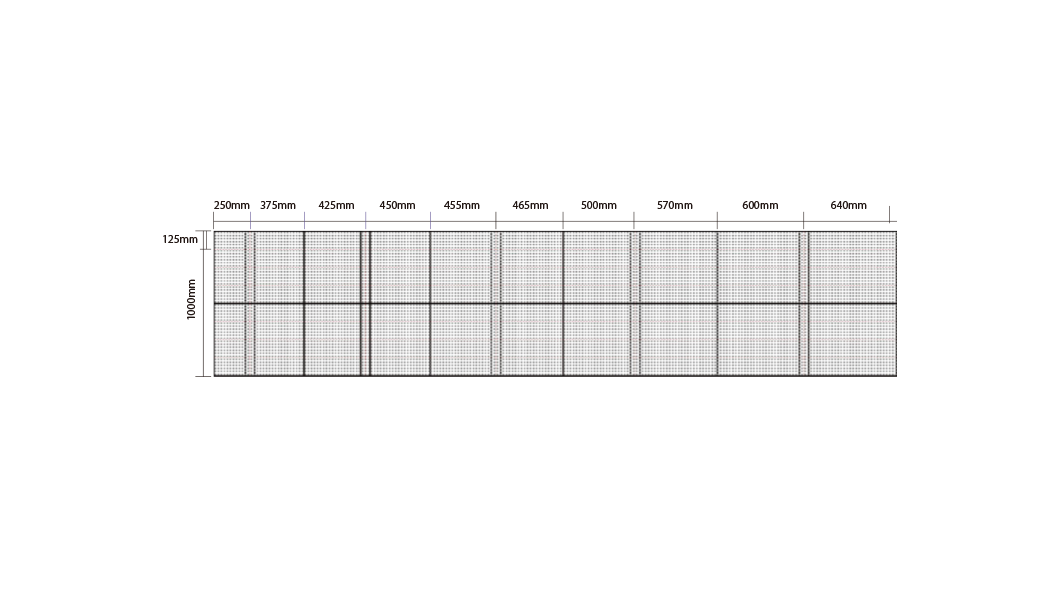

Fully Customizable Screen Dimensions
LED display screens are fully customizable in various sizes. Tailor width, height and overall dimensions to precisely match specific venue spaces and project requirements, ensuring a perfect fit for every installation scenario.
Specifications
| Model | IT1.9 | IT2.8 | IT3.9-1000nits | IT3.9-3500nits | IT3.9-5500nits |
| Pixel Pitch(mm) | H1.9-V3.9 | H2.8-V5.6 | H3.9-V7.8 | H3.9-V7.8 | H3.9-V7.8 |
| Pixel Matrix Per Sq.m | 129,024 | 61,952 | 32,768 | 32,768 | 32,768 |
| Pixel Configuration | SMD1515 | SMD1921 | SMD2121 | SMD1921 | SMD1921 |
| Brightness (nits) | 3,000 | 5,000 | 3,500 | 3,500 | 5,500 |
| Scan | 1/14 | 1/16 | 1/16 | 1/16 | 1/8 |
| Module Dimension | 500x125mm /1.64x0.41ft | 500x125mm / 1.64x0.4 ft | 500x125mm / 1.64x0.41ft | 500x125mm / 1.64x0.41ft | 500x125mm /1.64x0.41ft |
| Cabinet Dimension | 1000x500mm / 3.28x1.64ft | 1000x500mm / 3.28x1.64ft | 1000x500mm /3.28x1.64ft | 1000x500mm /3.28x1.64ft | 1000x500mm / 3.28x1.64ft |
| Cabinet Resolution | 504x128 | 352x88 | 256x64 | 256x64 | 256x64 |
| Transparency | 30% | 50% | 70% | 70% | 70% |
| Cabinet Material | CNC Aluminum | CNC Aluminum | CNC Aluminum | CNC Aluminum | CNC Aluminum |
| Cabinet Weight | 5 kg | 5 kg | 5 kg | 5 kg | 5 kg |
| Power Con. (Max / Avg) | 800/360w/sq.m | 800/360w/sq.m | 400/180w/sq.m | 400/180w/sq.m | 800/360w/sq.m |
| Service Access | Front & Back | Front & Back | Front & Back | Front & Back | Front & Back |
| Refresh Rate (HZ) | 7,680 | 7,680 | 7,680 | 7,680 | 7,680 |
| Viewing Angle (H/V) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| IP Rate | IP24 | IP24 | IP24 | IP24 | IP24 |
| Operation Temperature | -40° 〜45° | -40° 〜45° | -40° 〜45° | -40° 〜45° | -40°〜45° |
| Input Voltage (AC) | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V |
| * Specifications and photos are subject to change without prior notice. | |||||
